DOWELTRON / PRECISION DOWEL JIG SYSTEM
ONE REFERENCE.
MATCHING HOLES.
Drill face and edge holes from the same setup. Rotate the jig, keep the offset, and bring cabinet parts together flush.
| $299 $350
PREORDER: 15% OFF
|
|
|
|
|
THE DEFINING MOVE

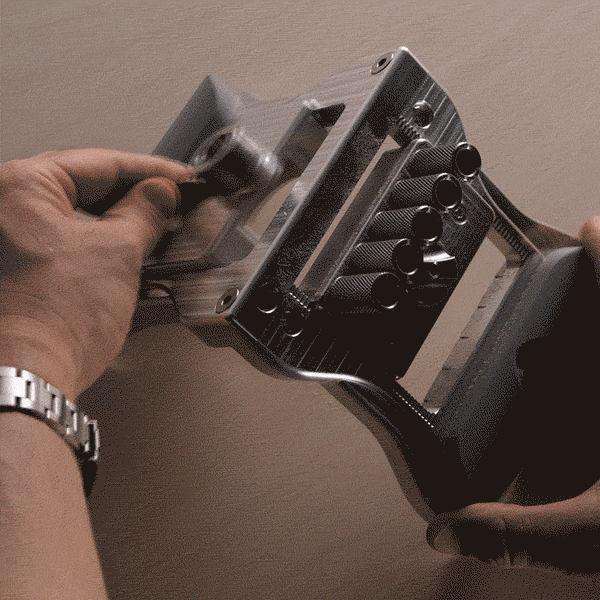

Rotate the jig.
Keep the reference.
Turn Doweltron 180° on one axis and 90° on the other to switch between face and edge drilling—without rebuilding the setup.
|
|
FACE HOLES
180° / Y
Drill the broad panel face for matching joints and hardware.
|
→
|
EDGE HOLES
90° / X
Drill the narrow panel edge at the identical offset.
|
|
|
|
6 / 8 / 10
MM DOWEL SIZES
|
16 MM
HOLE SPACING / 32 MM SYSTEM
|
2 MM
INDEX RAIL CLICKS
|
|
|
ONE SYSTEM / TWO CONNECTIONS
Dowels locate.
Minifix locks.
Use the primary arm for dowel holes and the secondary arm for the Minifix boss hole. Both stay tied to the same reference.
|
PRIMARY ARM
Drills the aligned dowel holes that locate the joint.
|
SECONDARY ARM
Drills the perpendicular Minifix boss hole that locks the joint.
|
|
|
|
THREE WAYS TO WORK
Hold it. Mount it.
Bring it to the panel.
|

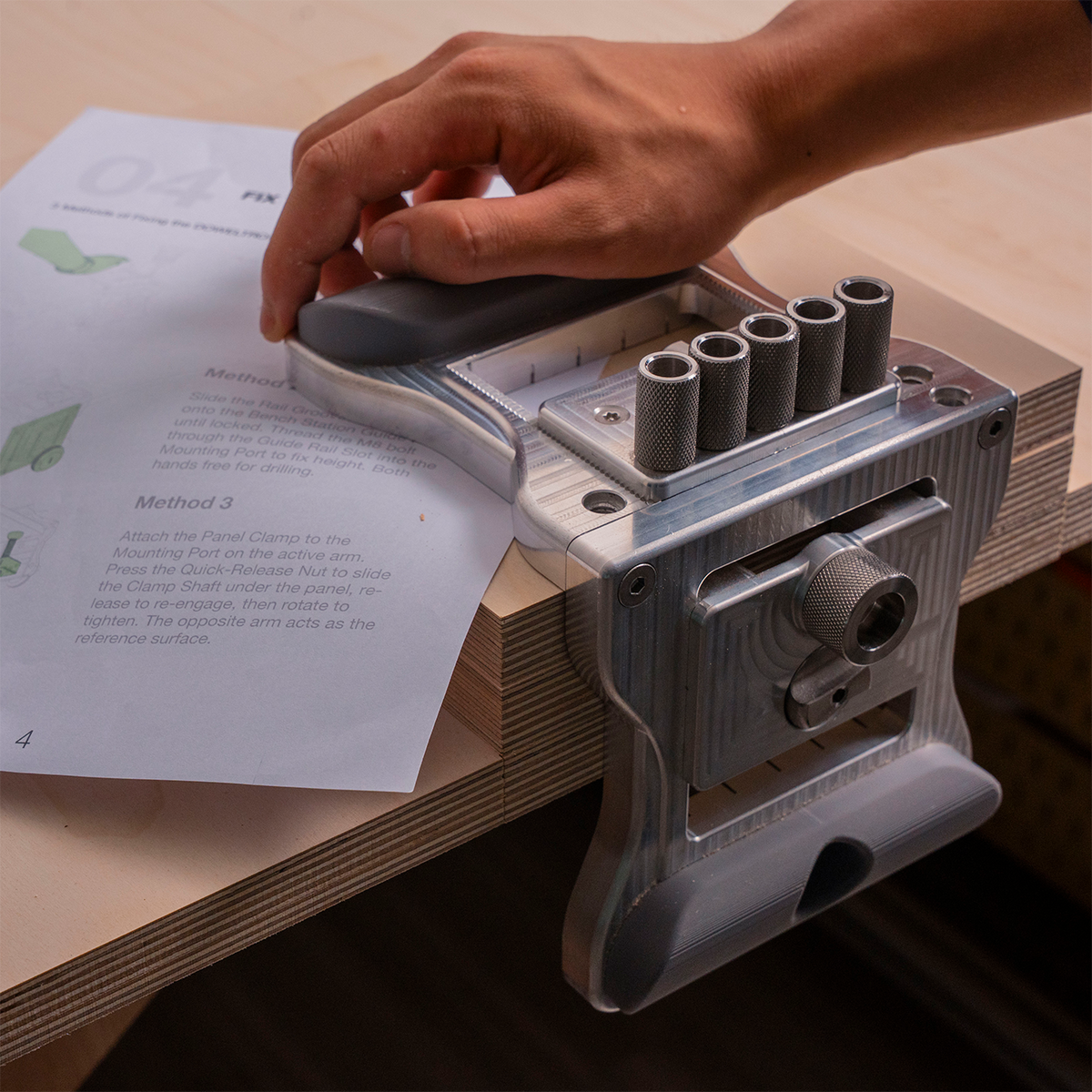

HANDHELD
Press the end grip down for quick one-off work.
|

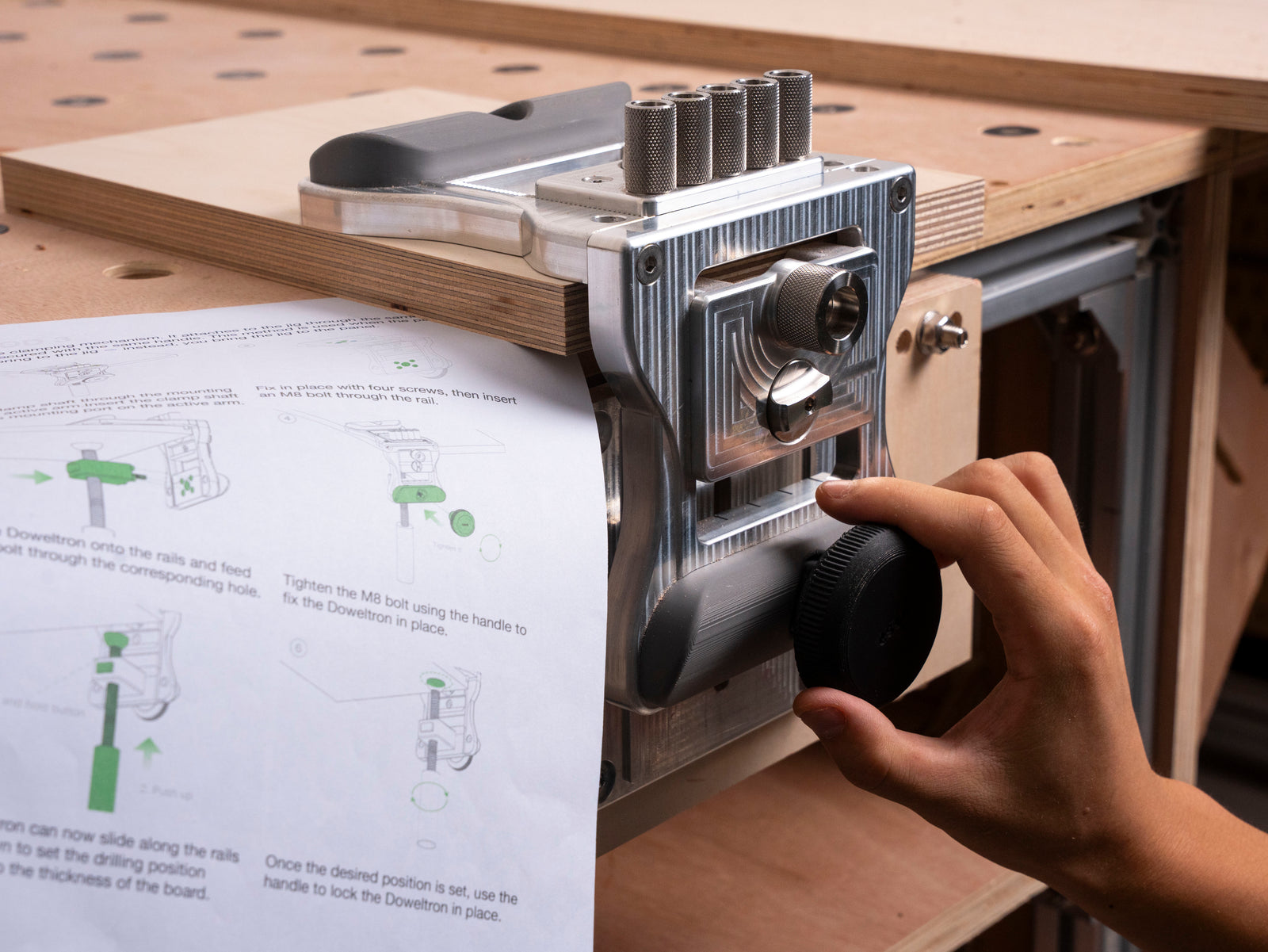

BENCH STATION
Lock the jig to guide rails for repeat drilling.
|

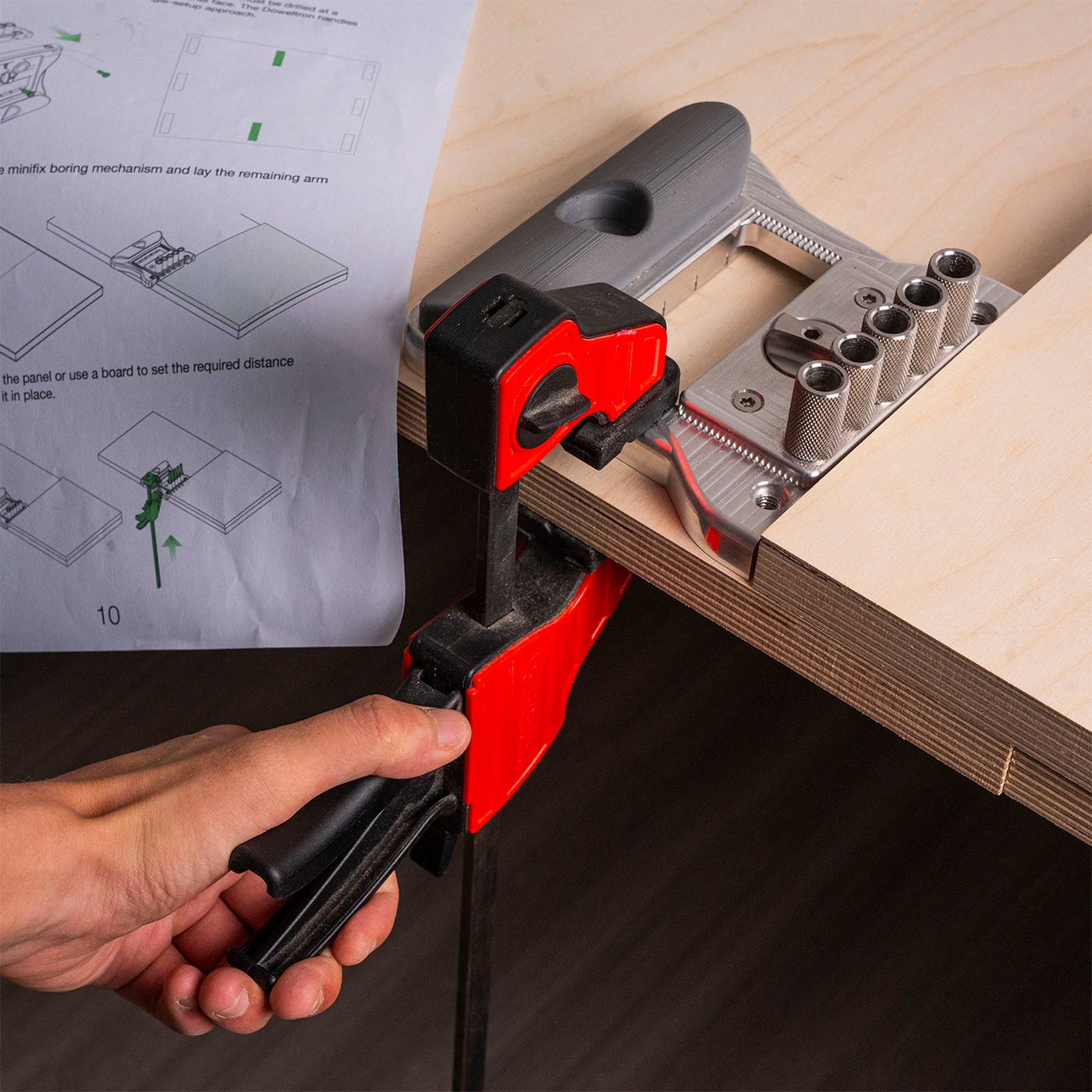

PANEL CLAMP
Take the jig to large workpieces.
|
|
|
CABINETS / SHELVES / DIVIDERS
Edge joints and
mid-panel joinery.
Work from an edge, a drawn reference line, or a positioning board to place shelves and dividers exactly where the design calls for them.
|
|
|
PREORDER NOW / 15% OFF
Build the joint
from one reference.
Hard-anodized aluminum. 304 stainless steel drill guides.
Shipping scheduled for the end of August.
|
